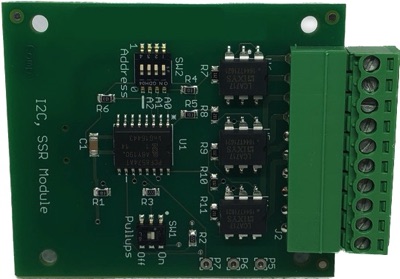

Graves Electronics LLC 81 I2C Solid-state Relay  Module for the 81 Embedded Microcontroller Board

81 SSR Relay Modules

The Relay module is an easy to use relay module that increases the functionality of the 81 controller board. It plugs into either of the module ports on the 81 controller board. The Relay1 module uses the I2C bus to communicate with the microcontroller on the 81 board. It has DIP switches which enable address selection, as well as to engage or disengage pull-up resistors for the I2C bus. The module interfaces to the outside world via the 10-position pluggable terminal block.
